EcoFlow 100W Flexible Solar Panel ? 23% High Efficiency, IP68 Waterproof, Lightweight & Flexible Solar Panel ? EF-SOLAR100

Product details

The EcoFlow 100W Flexible Solar Panel (EF-SOLAR100) combines high solar efficiency with a lightweight, flexible construction for convenient installation on curved and irregular surfaces.

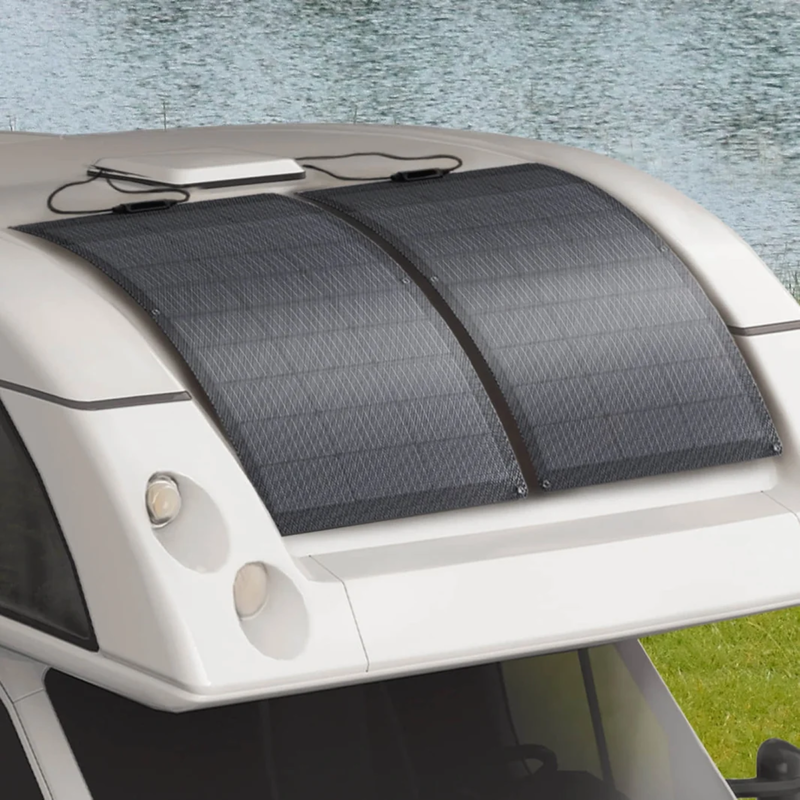

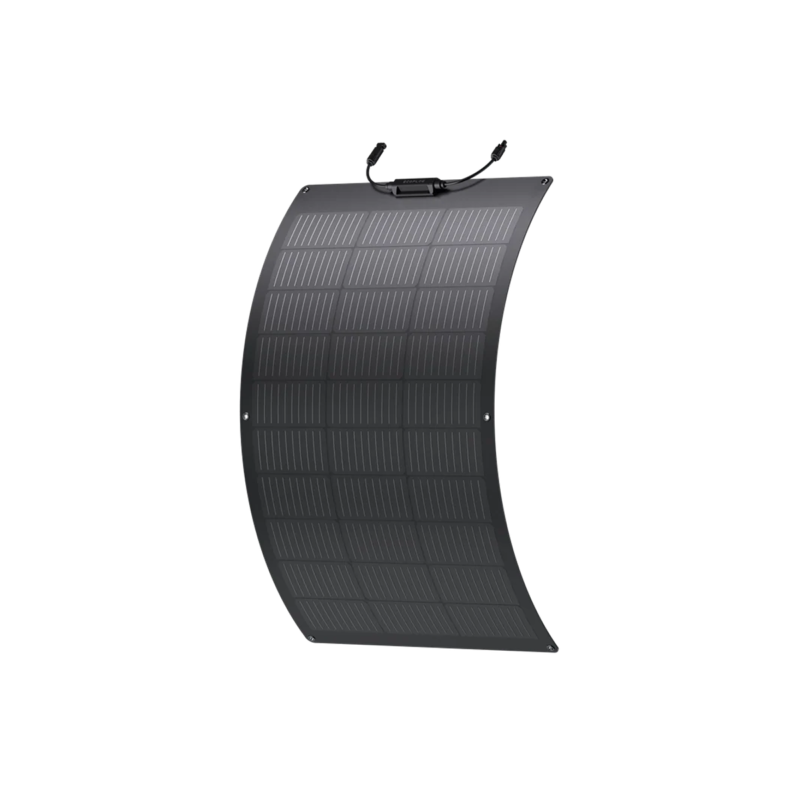

Featuring 100W rated output and up to 23% solar conversion efficiency, the panel uses 182 monocrystalline silicon cells to provide efficient solar energy generation. Its flexible construction allows it to bend up to 258?, making it particularly suitable for RV roofs, camper vans and other curved surfaces.

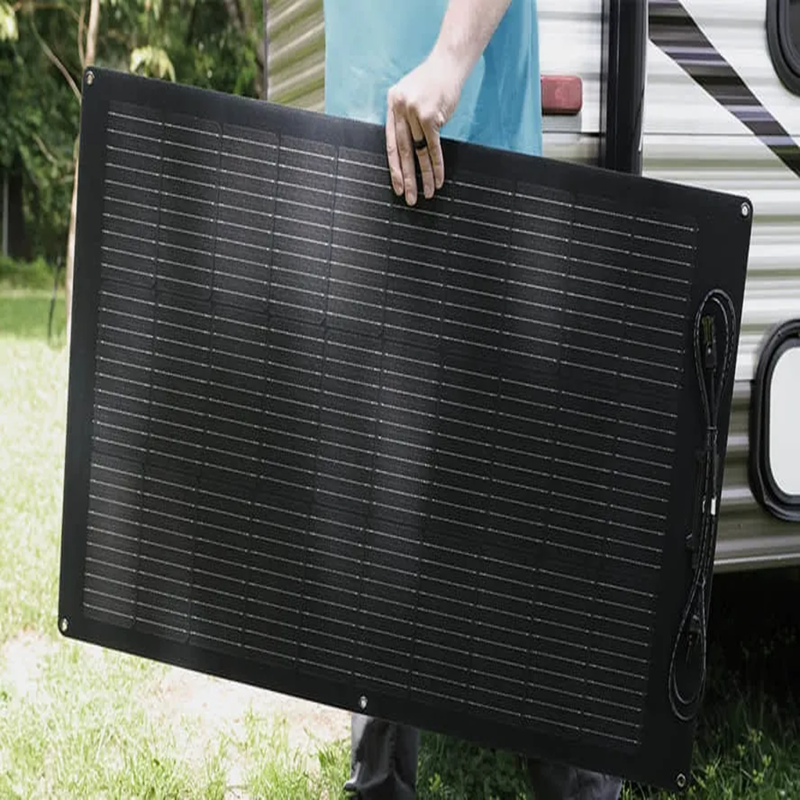

The panel weighs approximately 2.3 kg, making it significantly easier to transport and install than conventional rigid solar panels. It also features IP68 water and dust resistance, with an ETFE protective film and glass-fiber-based construction designed for outdoor environments.

Pre-cut mounting eyelets provide flexible installation options, including hanging with hooks or securing the panel to a suitable surface with adhesive. The integrated solar connector and included 3.3 ft solar cable allow connection to compatible solar power systems and portable power stations.

Specifications:

Product Name: EcoFlow 100W Flexible Solar Panel
Model: EF-SOLAR100
Rated Power: 100W ?5W
Solar Cell Type: Monocrystalline Silicon
Solar Conversion Efficiency: Up to 23%
Number of Solar Cells: 182
Open-Circuit Voltage (Voc): 20.3V
Short-Circuit Current (Isc): 6.3A
Maximum Operating Voltage (Vmp): 17.1V
Maximum Operating Current (Imp): 5.9A
Maximum System Voltage: 600V DC (UL)
Maximum Fuse Current: 15A
Temperature Coefficient of Rated Power: -0.39%/?C
Temperature Coefficient of Open-Circuit Voltage: -0.33%/?C
Temperature Coefficient of Short-Circuit Current: 0.06%/?C
Water & Dust Resistance: IP68

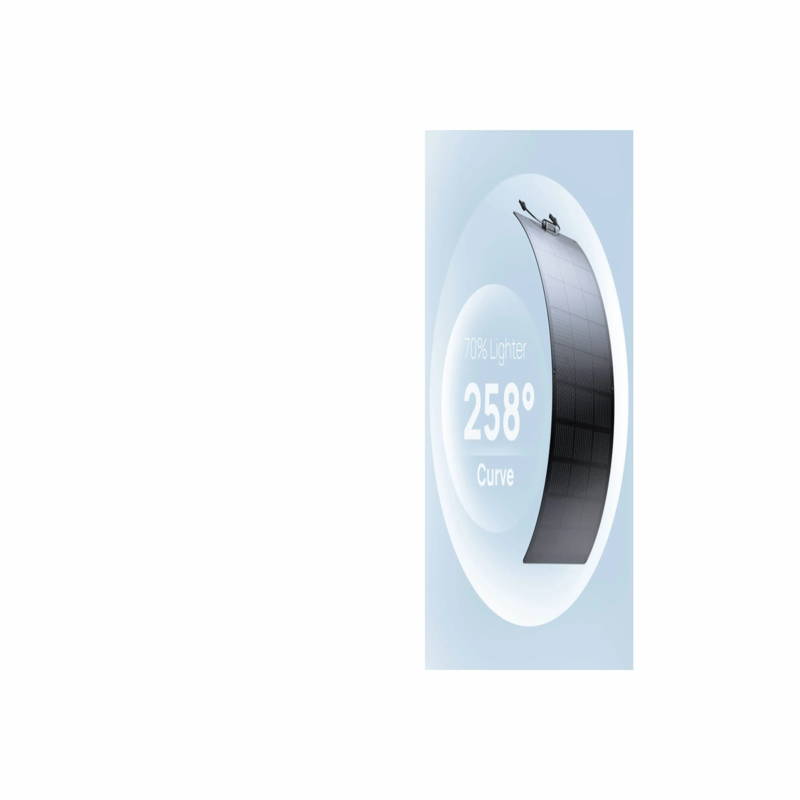

Flexibility: Up to 258?
Panel Weight: Approx. 2.3 kg
Dimensions: 1055 ? 612 ? 25 mm
Approx. Dimensions: 105.5 ? 61.2 ? 2.5 cm
Installation: Pre-cut eyelets / suitable adhesive mounting
Protective Material: ETFE film with glass-fiber construction
Application: RVs, vans, camping, outdoor and portable solar systems
Warranty: 36 months
